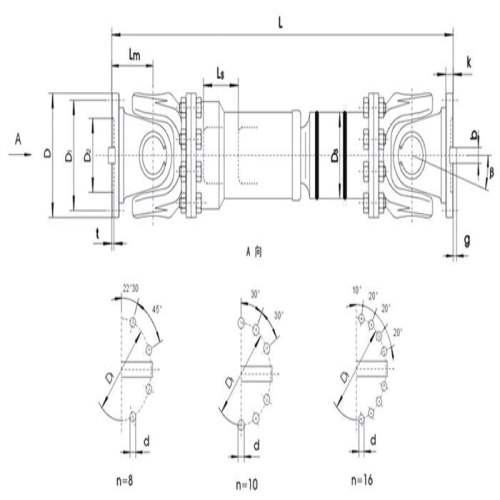

WC-BF型標準伸縮法蘭式萬向聯軸器基本參數：
型號 | 回轉 | 公稱 | 疲勞 | 軸線 ＜β | 伸縮量 LS mm | 尺 寸（mm | 轉動慣量 I | 重量 G | |||||||||||
Lmin | D1 | D | D3 | Lm | n-d | k | t | B | g | Lmin | 增長 | Lmin | 增長 | ||||||
SWC180BF | 180 | 12.5 | 6.3 | 25° | 100 | 810 | 155 | 105 | 114 | 110 | 8-17 | 17 | 5 | 0.267 | 0.0070 | 80 | 2.8 | ||
SWC225BF | 225 | 40 | 20 | 15° | 140 | 920 | 196 | 135 | 152 | 120 | 8-17 | 20 | 5 | 32 | 9.0 | 0.788 | 0.0234 | 138 | 4.9 |
SWC250BF | 250 | 63 | 31.5 | 15° | 140 | 1035 | 218 | 150 | 168 | 140 | 8-19 | 25 | 6 | 40 | 12.5 | 1.445 | 0.0277 | 196 | 5.3 |
SWC285BF | 285 | 90 | 45 | 15° | 140 | 1190 | 245 | 170 | 194 | 160 | 8-21 | 27 | 7 | 40 | 15.0 | 2.873 | 0.0510 | 295 | 6.3 |
SWC315BF | 315 | 125 | 63 | 15° | 140 | 1315 | 280 | 185 | 219 | 180 | 10-23 | 32 | 8 | 40 | 15.0 | 5.094 | 0.0795 | 428 | 8.0 |
SWC350BF | 350 | 180 | 90 | 15° | 150 | 1410 | 310 | 210 | 267 | 180 | 10-23 | 35 | 8 | 50 | 16.0 | 9.195 | 0.2219 | 632 | 15.0 |
SWC390BF | 390 | 250 | 125 | 15° | 170 | 1590 | 345 | 325 | 267 | 215 | 10-25 | 40 | 8 | 70 | 18.0 | 16.62 | 0.2219 | 817 | 15.0 |
SWC440BF | 440 | 355 | 180 | 15° | 190 | 1875 | 390 | 255 | 325 | 260 | 16-28 | 42 | 10 | 80 | 20.0 | 28.24 | 0.4741 | 1290 | 21.7 |
SWC490BF | 490 | 500 | 250 | 15° | 190 | 1985 | 435 | 275 | 325 | 270 | 16-31 | 47 | 12 | 90 | 22.5 | 46.33 | 0.4744 | 1631 | 21.7 |
SWC550BF | 550 | 710 | 355 | 15° | 240 | 2300 | 492 | 320 | 426 | 305 | 16-31 | 50 | 12 | 100 | 22.5 | 86.98 | 1.3570 | 2567 | 34.0 |
SWC620BF | 620 | 1000 | 500 | 15° | 240 | 2500 | 555 | 380 | 426 | 340 | 16-38 | 55 | 12 | 100 | 25.0 | 147.50 | 1.3570 | 3267 | 34.0 |
